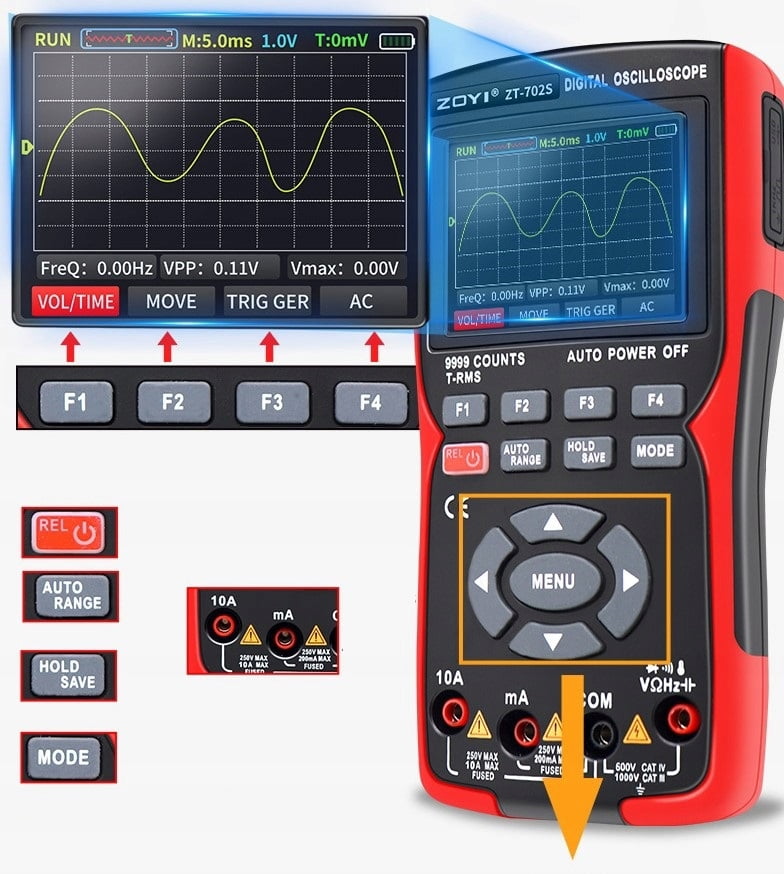

ZT-702S 2-in-1 high-precision 10MZ oscilloscope universal meter

ZT-702S 2-in-1 high-precision 10MZ oscilloscope universal meter

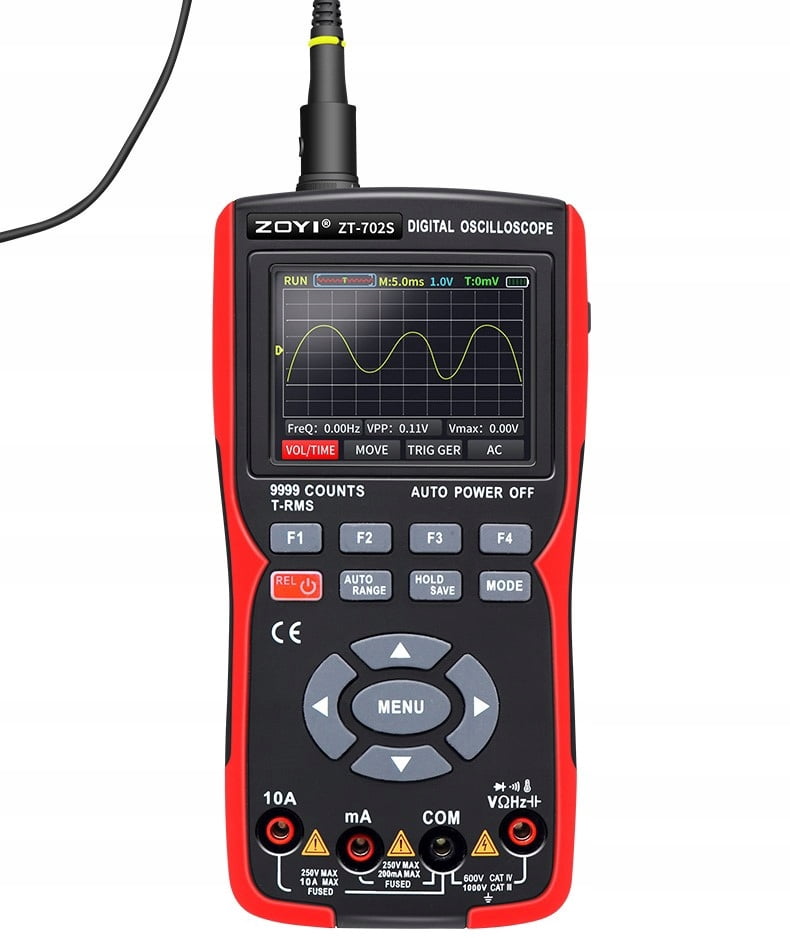

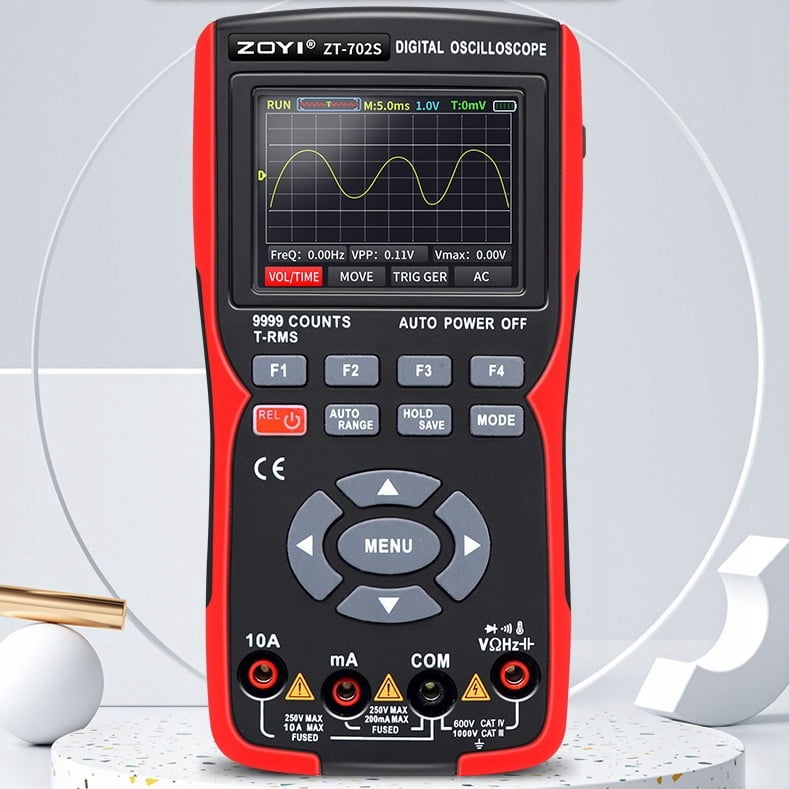

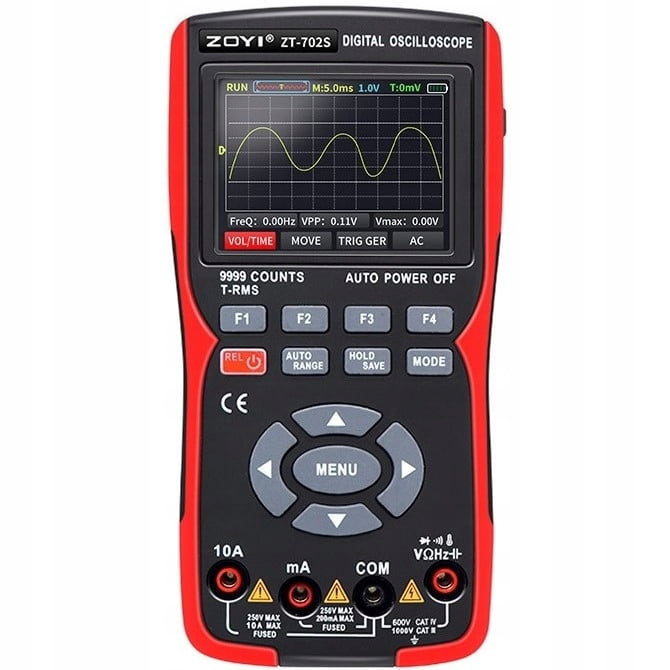

• Digital Multimeter 2-in-1 ZOYI ZT-702S

  ZT-702S combines two main functions:

  Digital Oscilloscope

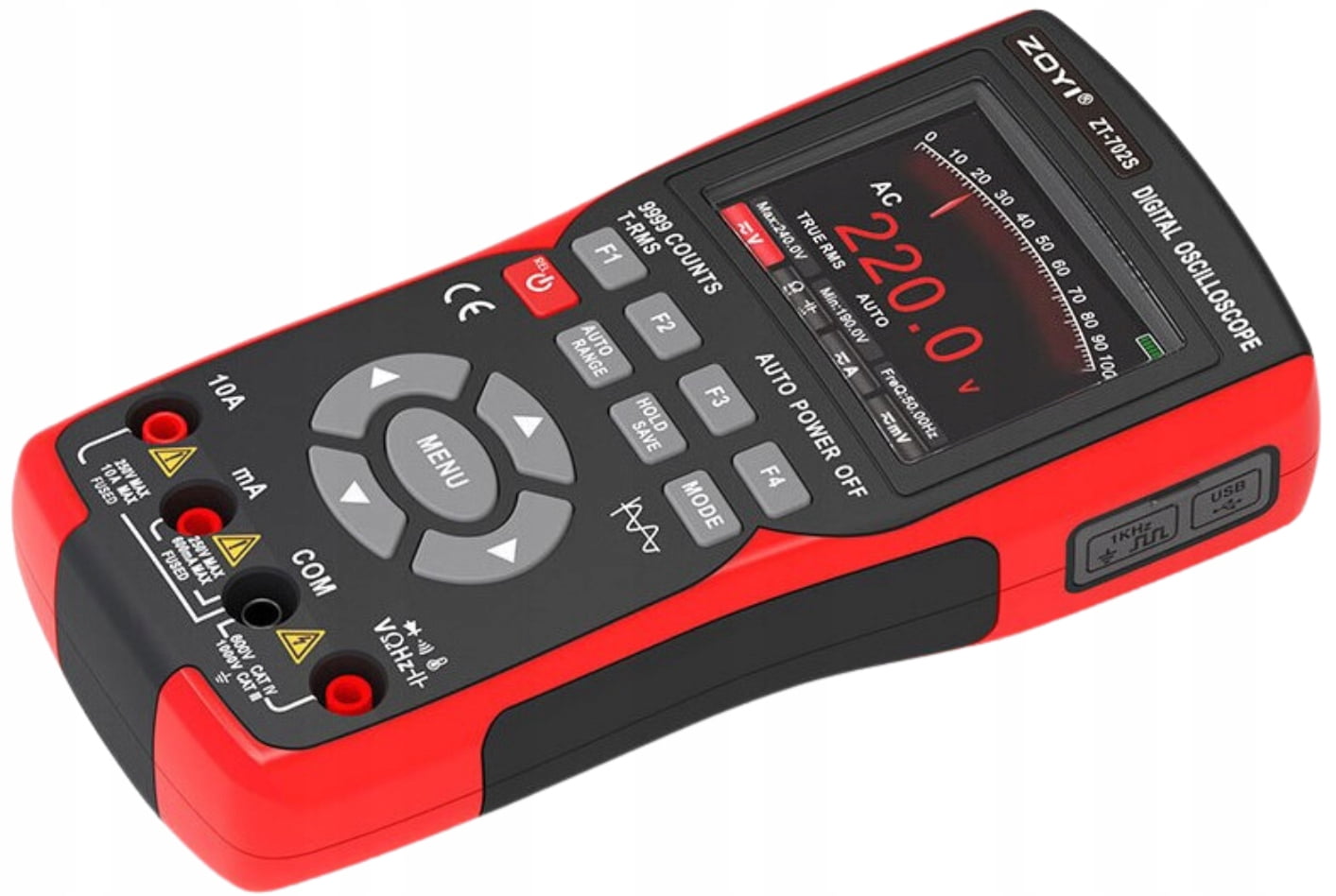

  Digital Multimeter

  In addition, it cleverly integrates functions such as continuity test, voltage test, diode test, temperature measurement, capacity, resistance and frequency.

  The instrument panel is equipped with a 2.8-inch IPS color display with a resolution of 320x240.

  ZT-702S has a built-in rechargeable lithium battery, providing users with efficient operation, portability and more powerful functions.

  This large n device is suitable for electrical test instruments in homes, cars and peripheral systems, as well as digital multimeters for measuring and detecting sockets, switches, lamps and low-voltage circuits.

• Main features of the product:

  1. Two in one equipment: connection between digital oscilloscope and multimeter

  2.8 inch IPS display - easy to control devices and easily read measurement results

  3. One click automatic measurement

  4. Powered by 18650 3.7V battery

  5. Charging through USB-C cable

  6. Compliant with CTA III 1000V safety level, CTA II 600V oscilloscope mode

  7. Dual ceramic fuse 200mA 10A

  8. Widely used in electronic products

• Digital oscilloscope mode:

  One click automatic measurement

  Time based calibration

  data storage

  Data export

  Language selection

  Set shutdown time

  Adjustable backlight

  Data transmission/loading port

  3V-1kHz square wave output

• Mesh underwear

  Number of channels: 1

  Coupling method: AC/DC

  Real time sampling rate: 48MSA/s

  DC current: 0.001A~9.999A

  AC current: 0.001A~9.999A

  DC voltage: 0.1mV~999.9V

  AC voltage: 0.1mV~750.0V

  Working mode: automatic+manual

  Capacitance measurement range: 0.001nF~99.99mF

  Resistance measurement range: 0.01 Ω~99.99M Ω

  Frequency range: 0.01Hz~999.9kHz

  Display screen: 2.8-inch color IPS

  Material: ABS+TPE

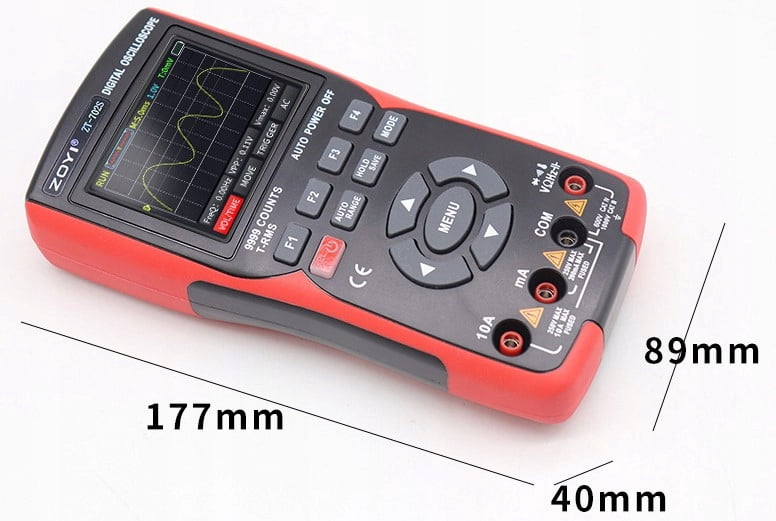

  Dimensions: 17.7 x 8.9 x 4 (centimeters)

  Weight: approximately 650 grams

• This set includes:

  1x measuring device ZT-702S

  1 set of measuring lines

  1x oscilloscope probe

  1x thermocouple

  1x adjustment screwdriver

  1x USB cable

  1x 18650 3.7V battery

  1 small bag

  ZOYI version with oscilloscope:

  ZT-701S: 1 channel, 24MSps, 3MHz, 64Kpts, 2.8 inch screen, 6000 count multimeter

  ZT-702S: 1 channel, 48MSps, 10MHz, 64Kpts, 2.8 inch screen, 9999 counting multimeter

  ZT-703S: 2-channel, 250MSps, 50MHz, 512Kpts, 3.5-inch screen, 25000 count multimeter
